石墨烯纳米材料
 石墨烯纳米材料




Graphene 石墨烯

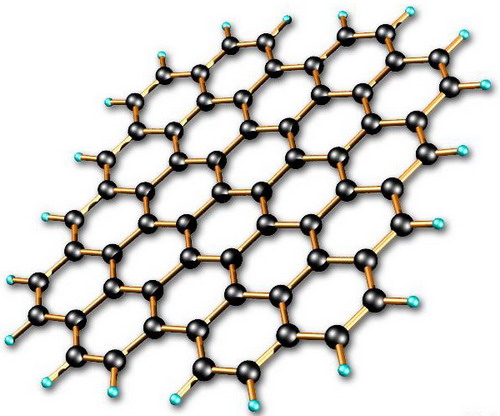

石墨烯(graphene)是由单层碳原子紧密堆积成二维蜂窝状晶格结构的一种碳质新材料,是构建其它维度碳质材料(如零维富勒烯、一维碳纳米管、三维石墨)的基本单元。石墨烯具有优异的电学、热学和力学性能,可望在高性能纳电子器件、复合材料、场发射材料、气体传感器及能量存储等领域获得广泛应用。由于其独特的二维结构和优异的晶体学质量,石墨烯蕴含了丰富而新奇的物理现象,为量子电动力学现象的研究提供了理想的平台,具有重要的理论研究价值。因此,石墨烯迅速成为材料科学和凝聚态物理领域近年来的研究热点。

graphene石墨烯



所有石墨烯产品

SiO2衬底单层石墨烯 Monolayer Graphene on 285 nm Silicon Dioxide Wafer, Sample Size:1cmx1cm: 5 pack Properties of Graphene Film
The thickness and quality of graphene films are controlled by Raman Spectroscopy
Graphene coverage is about 90%
Graphene film is continuous with occasional holes and cracks.
Graphene film is polycrystalline, i.e. it consists of grains with different crystallographic orientation.

Properties of Silicon Dioxide/Silicone Substrate:
The thickness of thermally grown oxide layer: 285nm
The thickness of the silicon wafer is 500 μm
Silicon wafer is P-doped.
Orientation: <100>
Resistance of the wafer: 0.005-0.001 Ohm;
Monolayer Graphene on 285 nm Silicon Dioxide Wafer, Sample Size:1cmx1cm: 10 pack
Monolayer Graphene on 285 nm Silicon Dioxide Wafer, Graphene area: 2"x2": 4 inch wafer
玻璃衬底单层石墨烯 Monolayer Graphene on Glass: 1"x1", Sample Size: 1"x1" Monolayer graphene film is grown by CVD processing on a copper foil and transferred onto glass
Properties of Graphene Film on glass
Thickness and quality of graphene films is controlled by Raman Spectroscopy
Graphene coverage is about 90%
The graphene film is continuous, with occasional holes and cracks.
The graphene film is polycrystalline, i.e. it consists of grains with different crystallographic orientation.
T is higher than 97%
Sheet resistance 1500 Ω

Properties of Glass Substrate:
Thickness: 0.7 mm
Density: 2.38 g/cc
Optical transmission without graphene (Visible Range, 380-800 nm)>99.9%
Monolayer Graphene on Glass: 1"x1", Sample Size: 1"x1": 5 pack
Monolayer Graphene on Glass: 2"x2", Sample Size: 2"x 2"
PET衬底单层石墨烯 Monolayer Graphene on PET: 1"x1", Sample Size: 1"x 1" Monolayer graphene film is grown by CVD processing on a copper foil and transferred onto PET
Monolayer Graphene on PET: 1"x1", Sample Size: 1"x 1": 5 PACK
Monolayer Graphene on PET: 2"x2", Sample Size: 2"x 2"

镍箔基多层石墨烯 Multilayer Graphene Film on Nickel foil: 2"x2" Nickel foil thickness: 25 micron
We offer multilayer graphene films that are about 300 monolayers (105 nm) thick on average.
These graphene films are grown on nickel foil and continuous across nickel surface steps and grain boundaries.
镍基多层石墨烯 Multilayer Graphene Film on Nickel, Ten 10mmx10mm samples Multilayer Graphene Film on Nickel
Multilayer Graphene Film on Nickel, Twenty 10mmx10mm samples
Multilayer Graphene Film on Nickel,One Wafer 100mm (4 in)
铜箔基单层石墨烯 Single Layer Graphene on Copper foil: 2"x2" Copper foil thickness: 20 micron
Single Layer Graphene on Copper foil: 4"x2"
Single Layer Graphene on Copper foil: 4"x4"

CVD石墨烯TEM grids 25 pack: CVDGraphene TEM Grid on Copper 2000 support CVD Graphene film deposited on ultrafine copper TEM grids, 2000 Mesh
Use CVD graphene grown on Ni to prepare TEM grids
Thickness of CVD Graphene film: 0.3-2 nm (1-6 monolayers)
Typical graphene coverage:60-90%
5 pack: CVDGraphene TEM Grid on Copper 2000 support
25 pack: CVDGraphene TEM Grid on Lacey Carbon Support CVD Graphene film deposited on Lacey carbon TEM grids, 300 Mesh
Use CVD graphene grown on Ni to prepare TEM grids
Thickness of CVD Graphene film: 0.3-2 nm (1-6 monolayers)
Typical graphene coverage:60-90%
5 pack: CVDGraphene TEM Grid on Lacey Carbon Support
Trial pack: 10 CVDGraphene TEM Grids 5/5 5 CVD Graphene film deposited on lacey carbon TEM grids (300 Mesh) and 5 CVD Graphene film deposited on Copper TEM grids (2000 Mesh).
Use CVD graphene grown on Ni to prepare TEM grids
Thickness of CVD Graphene film: 0.3-2 nm (1-6 monolayers)
Typical graphene coverage:60-90%

立体多层石墨烯 3D Multilayer Graphene Film on Nickel Foam, 2"x2" 3D Multilayer graphene on Ni Foam
3D Multilayer Graphene Film on Nickel Foam, 2"x4"
3D Monolayer Graphene Film on Copper Foam, 1.5"x1.5", TWO Pack 3D graphene on Cu Foam
3D Monolayer Graphene Film on Copper Foam, 2"x4"

石墨烯纳米粉末 Graphene Nanopowder: 3 nm Flakes - 1 g Grade AO-1 dry black powder
Specifications:
Specific surface area-600 m2/g
Color: Black
Solid content: 98%
Carbon: 97%, Hydrogen 1%, Oxygen 2%
Average flake thickness: 1 nm (less than 3 monolayers)
Average Particle (lateral) size: ~10 microns.
Graphene Nanopowder: 3 nm Flakes-Trial Size 0.5 g
Graphene Nanopowder: 8 nm Flakes- 5 g Grade AO-2 dry powder
Specific surface area-100 m/g2
Color: Black
Purity: 99.9%
Average flake thickness: 8 nm (20-30 monolayers)
Average Particle (lateral) size: ~ 550 nm (150-3000) nm.?
Graphene Nanopowder: 8 nm Flakes- 25 g
Graphene Nanopowder: 12 nm Flakes-5 g Grade AO-3 dry powder
Specifications:
Specific surface area-80 m/g2
Color: Black
Purity: 99.2%
Average flake thickness: 12 nm (30-50 monolayers)
Average Particle (lateral) size: ~ 4500 nm (1500-10000) nm.
Graphene Nanopowder: 12 nm Flakes-25 g
Graphene Nanopowder: 12 nm Flakes-100 g
Graphene Nanopowder: 60 nm Flakes- 25 g Grade AO-4 dry powder
Specifications:
Specific surface area<15 m/g2
Color: Black
Purity: 98.5%
Average flake thickness: 60 nm
Particle (lateral) size: ~ 3-7 microns.
Graphene Nanopowder: 60 nm Flakes-100 g
Graphene Nanopowder: Grade C1, 25 g Grade C1
Specifications:
Specific surface area-60 m/g2
Color: Black
Purity: 97%
Average flake thickness: 5-30nm
Average Particle (lateral) size: ~ 5-25 microns.
Graphene Nanopowder: Multilayer flakes, 5 g? Grade MO-1
Specifications:
Specific surface area-60 m/g2
Color: Black
Purity: 99.9%
Average flake thickness: 28 nm
Density: 2 g/cm3
Graphene Nanopowder: Multilayer flakes, 25 g
Graphene Nanopowder Trial kit Graphene Nanopowder Grade AO-2, 1 g
Graphene Nanopowder Grade AO-3, 5 g
Graphene Nanopowder Grade AO-4, 5 g
Graphene Nanopowder Grade C-1, 5 g
单层石墨烯溶液 Pristine Graphene Monolayer Flakes (50 ml) Dispersion in ethanol.
Concentration: 1 mg/L
Carbon content: 99.99%
Ultrapure: no oxidation, no surfactants
Average flake thickness: 0.35 nm (1 monolayer)
Average Particle (lateral) size: ~ 550 nm (150-3000) nm.
传导石墨纸 Conductive Graphene Paper Diameter of Graphene Film: 100 mm
Average thickness: 45 microns
Electrical Conductivity: about 1000 S/cm
Silvery/Nontransparent

单层氧化石墨烯 Single Layer Graphene Oxide: 100 mg Dry powder
Color:Brown
Composition: Carbon (79%), Oxygen (20%)
Flake size: 0.5-5 microns.
Thickness: 1 atomic layer - at least 80%.
Graphene oxide disperses readily in water and other solvents, breaking up into macroscopic flakes, mostly one layer thick. Graphene oxide layers are about 1.1 ± 0.2 nm thick.
Single Layer Graphene Oxide: 500 mg
High Porosity Reduced Graphene Oxide-250mg dry black powder
Specific surface area-about 400 m2/g
Color: Black
Solid content: 98%
Average flake thickness:1 monolayer
Average Particle (lateral) size: ~3-10 microns.
Flakes have multiple openings and holes
Improved solubility in organic solvents?
High Porosity Reduced Graphene Oxide-500mg
High Surface Area Reduced Graphene Oxide 75 mg dry black powder
Specifications:
Specific surface area-833 m2/g
Color: Black
Solid content: 98%
Carbon/Oxygen Ratio 10.5
Average flake thickness:1 monolayer
Average Particle (lateral) size: ~3-5 microns.
氧化石墨烯 Reduced Graphene Oxide: 60 mg, Dry Nanopowder Color: Black
Single layer flakes >50%
Low concentration of lattice defects
Specific surface area (SSA) >250m2/g
Lateral size: 1um-10um
Thickness: 0.5-0.6 nm
单层氧化石墨烯水溶液 Single Layer Graphene Oxide Dispersion in Water: 60 ml Aqueous dispersion, 60 ml
Concentration: 275 mg/L
Composition: Carbon (79%), Oxygen (20%)
Flake size: 0.5-5 microns.
Thickness: 1 atomic layer - at least 80%.
Color:Brown
Single Layer Graphene Oxide Dispersion in Water: 175 ml
Highly Concentrated Single Layer Graphene Oxide Dispersion in Water:60 ml Concentration: 5g/L, 0.33g per bottle
Composition: Carbon (79%), Oxygen (20%)
Flake size: 0.5-0.7 microns.
Thickness: 1 atomic layer - at least 60%.
Color:Brown
Highly Concentrated Single Layer Graphene Oxide Dispersion in Water:175 ml
Highly Concentrated Single Layer Graphene Oxide Dispersion in Water:1000 ml
玻璃基氧化石墨烯 The Graphene OxideThin Film on Glass Diameter of Graphene Oxide Film: 35 mm
Thickness: 175 nm
Deposited on a round slide: D=50.8 cm, thickness=1 mm
氧化石墨烯纸 Graphene Oxide Paper Diameter:4.0cm
Thickness: 10 microns
Non-conductive
Tensile modulus> 20 GPa
Color: Black
Bends easily
Kish石墨烯 Natural Kish Graphite (Grade 200), 5g Ultrapure: Carbon>99.2%, Moisture<0.35%
Flake size: 0.7-2 mm
Natural Kish Graphite (Grade 300), 0.2g Ultrapure: Carbon>99%
Large Flakes: size 1-3 mm
Natural Kish Graphite (Grade 300), 0.5g
石墨烯转移 5 Pack: Graphene Transfer Tape Thermal Release Tape, 5 pack
Size: 200 mm x 200 mm
Graphene Transfer Kit Twographene release Tapes (Size: 200 mm x 200 mm)
Single Layer Graphene on Copper foil: 2"x2"
Trial pack: Twenty 10mmx10mm samples, Graphene Film on Nickel





石墨烯薄片溶液 Pristine Graphene Monolayer Flakes

石墨烯
容量25ml/50ml
溶液:乙醇
浓度:1mg/L
Carbon content: 99.99%
Ultrapure: no oxidation, no surfactants
Average flake thickness: 0.35 nm (1 monolayer)
Average Particle (lateral) size: ~ 550 nm (150-3000) nm.


CVD Graphene:镍基石墨烯层
100mm直径 - One Wafer 100mm with Graphene Film on Nickel
10mm x 10mm,10片 - Ten 10mmx10mm samples, Graphene Film on Nickel
10mm x 10mm,20片 - Twenty 10mmx10mm samples, Graphene Film on Nickel
石墨烯石墨烯石墨烯

应用:
Graphene electronics
Conductive coatings
Aerospace industry
Support for metalic catalysts
Microactuators
MEMS and NEMS
Chemical and bio sensors
Multifunctional Materials Based on Graphene
Graphene Research

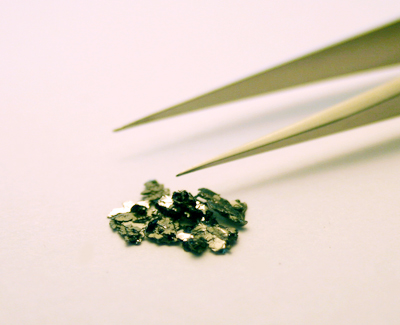

Kish Graphite:石墨烯鳞

石墨烯

Grade 300
Ultrapure: Carbon>99%
Large Flakes: size 1-3 mm
石墨烯鳞被研究机构用于制作石墨烯。典型的TEM图形:
石墨烯
石墨烯

Grade 50
Ultrapure: Carbon>99.2%, Moisture<0.35%
Flake size 500-1000 micron
Perfect inexpensive starting material for syntesis of:
   Graphene Intercalation Compounds
   Graphene Oxide
   Graphene Flakes prepared by sonication assisted dispersion.
   Graphene hybrid materials

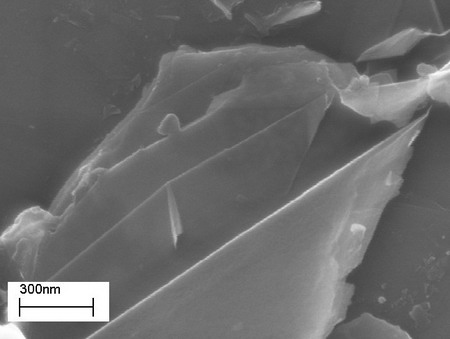

典型的TEM图形:
石墨烯


CVD Graphene石墨烯膜
film deposited on lacey carbon TEM grids, 300 Mesh

石墨烯
Thickness of CVDTM Graphene film: 0.3-3 nm
Typical graphene coverage:15-20%

超薄CVD Graphene石墨烯膜是高分辨率TEM图像的理想样品,应用包括:
   Imaging of nanoparticles, proteins, viruses, DNA
   Medical Diagnostics
   Single Cell Studies
   3D protein imaging
   Drug design
   Imaging of Biological Markers and bio-inspired nanomaterials
   Cryo-transmission electron microscopy, Electron Cryomicroscopy
   Single Particle Analysis (SPA)
   Materials science and Semiconductor Research
   Electron Energy Loss Spectroscopy (EELS)


Graphene Nanopowder:石墨烯纳米粉末

应用:
   Graphene-polymer composite materials
   Electrically and thermally conductive composites
   Conductive coatings
   Aerospace industry
   Fire retardants
   Support for metalic catalysts
   Low permeability materials
   Electro-static Dissipation (ESD) films
   Chemical and bio sensors
   Multifunctional Materials Based on Graphene
   Graphene Research

种类
8 nm薄膜
12 nm薄膜
60 nm薄膜
多层薄膜
等级
AO-2
AO-3
AO-4
MO-1
石墨烯
石墨烯
石墨烯
石墨烯
参数 Specific surface area-100 m/g2
Color: Black
Purity: 99.9%
Average flake thickness: 8 nm (20-30 monolayers)
Average Particle (lateral) size: ~ 550 nm (150-3000) nm
Specific surface area-80 m/g2
Color: Black
Purity: 99.2%
Average flake thickness: 12 nm (30-50 monolayers)
Average Particle (lateral) size: ~ 4500 nm (1500-10000) nm
Specific surface area<15 m/g2
Color: Black
Purity: 98.5%
Average flake thickness: 60 nm
Particle (lateral) size: ~ 3-7 microns
Specific surface area-60 m/g2
Color: Black
Purity: 99.9%
Average flake thickness: 28 nm
Density: 0.3 g/cm3

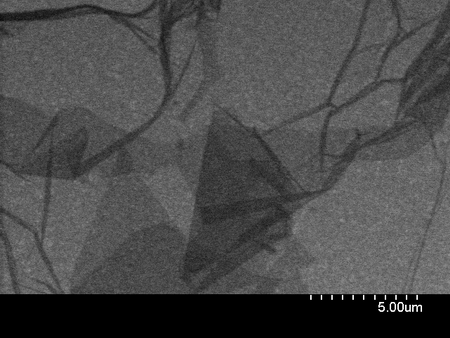

单层氧化石墨烯

石墨烯

Graphene Oxide: 100 mg
Dry powder
Color:Brown
Composition: Carbon (79%), Oxygen (20%)
Flake size: 0.5-5 microns
Thickness: 1 atomic layer - at least 80%
Graphene oxide disperses readily in water and other solvents, breaking up into macroscopic flakes, mostly one layer thick. Graphene oxide layers are about 1.1 ± 0.2 nm thick.

单层氧化石墨烯水溶液

石墨烯

Aqueous dispersion, 60 ml
Concentration: 275 mg/L
Composition: Carbon (79%), Oxygen (20%)
Flake size: 0.5-5 microns
Thickness: 1 atomic layer - at least 80%
Color:Brown



石墨烯CVD产品





玻色智能科技有限公司光谱仪专家
上海玻色智能科技有限公司
上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
广州: 139-0221-4841   武汉: 139-1733-4172
全国销售服务热线:4006-171751   Email: info@bosontech.com.cn
www.ejfyo.cn    2008-2025 All Rights Reserved!
91在线免费视频观看| 亚洲天堂久久久久久久| 国产a精品视频| 激情久久五月天| 激情偷乱视频一区二区三区| 日韩福利电影在线| 秋霞电影一区二区| 国内精品伊人久久久久av影院| 精品一区二区久久久| 国产成人综合自拍| eeuss鲁一区二区三区| 色综合中文字幕| 欧美另类z0zxhd电影| 日韩欧美你懂的| 国产日韩欧美亚洲| 一区二区三区中文在线观看| 同产精品九九九| 国产综合色在线| 99久久久精品免费观看国产蜜| 色婷婷一区二区三区四区| 欧美日韩小视频| 久久五月婷婷丁香社区| 亚洲欧洲三级电影| 午夜精品久久久久久久99水蜜桃| 麻豆国产一区二区| 99久久精品久久久久久清纯| 欧美日韩不卡一区| 国产亚洲欧美激情| 亚洲成人激情综合网| 国内精品嫩模私拍在线| 91色在线porny| 精品久久久久99| 亚洲影视在线观看| 国产大陆a不卡| 欧美精品99久久久**| 国产婷婷色一区二区三区| 一区二区三区小说| 国产乱码精品一区二区三| 欧美中文字幕一二三区视频| 久久五月婷婷丁香社区| 亚洲成人av一区| av电影在线观看不卡| 日韩欧美在线一区二区三区| 亚洲欧美日韩久久| 国产精品一卡二| 3d成人动漫网站| 亚洲男同1069视频| 成人综合婷婷国产精品久久 | 一区二区在线看| 国内外成人在线| 欧美日本一区二区| 亚洲欧美日韩一区二区 | 五月激情综合网| 91在线视频播放| 国产欧美日韩久久| 久久电影国产免费久久电影| 欧美午夜寂寞影院| 亚洲精品你懂的| 成人av一区二区三区| 2023国产一二三区日本精品2022| 亚洲成人你懂的| 欧美自拍丝袜亚洲| 亚洲欧美另类久久久精品 | 色婷婷久久久亚洲一区二区三区| 久久精品在这里| 狠狠色丁香久久婷婷综合丁香| 欧美精品免费视频| 亚洲超碰精品一区二区| 91国模大尺度私拍在线视频| 中文字幕亚洲精品在线观看| 成人一级片网址| 中文无字幕一区二区三区 | 国产精品免费视频观看| 国产一区二区三区| 精品福利av导航| 国产在线播放一区| 日韩精品中文字幕在线一区| 日本成人在线电影网| 91麻豆精品国产无毒不卡在线观看| 一区二区三区欧美久久| 欧美综合欧美视频| 亚洲小说春色综合另类电影| 欧美在线免费观看视频| 亚洲国产乱码最新视频 | 久久男人中文字幕资源站| 蜜桃在线一区二区三区| 日韩欧美在线影院| 精品中文av资源站在线观看| 精品av久久707| 国产精品性做久久久久久| 久久久激情视频| 国产91精品一区二区麻豆亚洲| 国产欧美日韩不卡| av不卡免费电影| 亚洲综合成人在线视频| 欧美日韩在线播| 美国毛片一区二区三区| 久久久国产综合精品女国产盗摄| 国产精品自在欧美一区| 国产精品护士白丝一区av| 91免费视频网| 五月激情综合色| 久久亚洲一区二区三区明星换脸| 国产精品一区二区91| 亚洲欧美一区二区三区极速播放 | av在线一区二区三区| 一区二区三区资源| 日韩一区二区在线观看| 国产精品一区一区三区| 亚洲欧美一区二区三区国产精品| 欧美手机在线视频| 精品一区二区免费| 亚洲丝袜美腿综合| 日韩一区和二区| 99久久久久久| 欧美bbbbb| 国产精品成人免费| 欧美一区二区三区视频免费播放| 国产精品夜夜爽| 亚洲电影一级黄| 日本一区二区三区电影| 欧美日韩久久久久久| 粉嫩av一区二区三区在线播放| 亚洲综合在线视频| 国产亚洲成aⅴ人片在线观看| 欧美制服丝袜第一页| 国内欧美视频一区二区| 亚洲综合一区二区精品导航| 久久精品日韩一区二区三区| 在线观看免费亚洲| 成人激情图片网| 久久91精品国产91久久小草| 亚洲综合免费观看高清完整版| 精品国产不卡一区二区三区| 在线观看免费一区| 成年人午夜久久久| 精品在线播放免费| 亚洲一区二区视频在线观看| 亚洲国产精品成人综合| 日韩视频免费观看高清完整版在线观看 | 蜜桃视频第一区免费观看| 中文字幕综合网| 久久综合国产精品| 欧美一区二区视频在线观看| 91行情网站电视在线观看高清版| 粉嫩蜜臀av国产精品网站| 另类专区欧美蜜桃臀第一页| 亚洲高清免费观看 | 色综合久久中文字幕综合网| 国产福利视频一区二区三区| 日本欧美在线看| 亚洲大片免费看| 尤物av一区二区| 亚洲欧美日韩久久| 日韩毛片精品高清免费| 亚洲国产精品v| 中文字幕精品综合| 国产午夜亚洲精品午夜鲁丝片| 精品免费国产二区三区| 欧美一区二区人人喊爽| 91精品免费在线观看| 欧美高清视频不卡网| 欧美日韩精品欧美日韩精品一 | 日韩一区二区电影| 8v天堂国产在线一区二区| 欧美日韩在线三区| 欧美视频在线观看一区| 欧美在线影院一区二区| 欧美性一二三区| 欧美日韩成人综合天天影院| 欧美日韩免费观看一区三区| 欧美日韩在线观看一区二区| 欧美日韩在线播放三区| 欧美人伦禁忌dvd放荡欲情| 欧美日韩在线不卡| 678五月天丁香亚洲综合网| 欧美日韩国产综合草草| 9191精品国产综合久久久久久| 欧美日韩性生活| 欧美一级二级在线观看| 精品乱码亚洲一区二区不卡| 久久亚洲精华国产精华液| 欧美国产禁国产网站cc| 亚洲欧美国产毛片在线| 亚洲成人tv网| 激情综合网最新| 成人的网站免费观看| 91福利视频网站| 538在线一区二区精品国产| 欧美成人欧美edvon| 国产日韩欧美一区二区三区乱码 | 91成人免费电影| 884aa四虎影成人精品一区| 欧美电影免费观看高清完整版在 | 成人免费三级在线| 欧美午夜影院一区| 日韩欧美国产综合一区| 国产精品入口麻豆原神| 亚洲国产一二三| 国产在线精品国自产拍免费|
