FJW
findrscope
红外观察仪，紫外观察仪，红外相机，热观察仪
产品主要包括：
350-1550nm红外观察仪：
84499A,84499A-5,
84499,84499-5,
85100,85100-5,
85100A,85100A-5,
85268,85268-5,
85268A,85268A-5,
89400,89400P
180-1550nm紫外观察仪：85300,85300-5
400-1800nm红外相机：85720,85700
400-2200nm红外相机：85726,85706
7-14um热观察仪：85800
显微镜用红外/紫外观察仪：85430A,85430A-5,84530UV-5,84530UV
红外滤光片轮式观察仪：85338A
头戴式红外观察仪：85050A ,85051A
84499A红外观察仪
| Field of View : |
40° |
| Magnification: |
~ 1:1 |
| Spectral Sensitivity : |
350-1350nm |
| Lens: |
Custom Infragon 25mm, f/1.0 |
| Standard Focal Range : |
100mm, (4") to infinity |
| Regions Displayed: |
Near UV, Visible, Near-IR |
| Peak Sensitivity : |
800nm |
| Resolution |
70 Lines/mm, minimum |
| Display: |
P20 Phosphor |
| Power: |
(1) standard "C" cell alkaline battery |
| Battery Life : |
>250-hours int., 375-hours continuous |
| Sensitivity Test : |
See 1350nm, 400μW LED @ 8-ft. |
| Operating Temperature |
-32° to 46°C, (-25 to 115°F) |

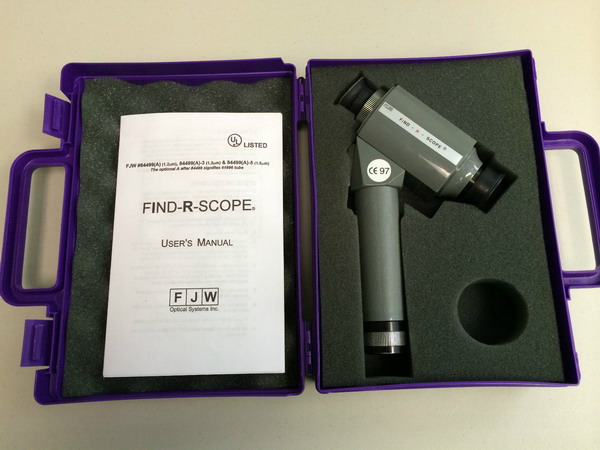

The FIND-R-SCOPE 84499A is a self-contained, hand-held Infrared Viewer with a spectral sensitivity of 350-1350 nm.
- Lightweight
- Self-Contained
- UL Approved
- High-Resolution
- Custom f/1.0 Infragon Lens
- User Adjustable Eyepiece
- Standard Tripod Mount
|
- Accepts Optional Filters
- Accepts Close-up Lenses
- Accepts Optional Iris
- Accepts Optional CCD Mt.
- Includes Battery
- Includes Hard Side Case
- 18-Month Limited Warranty
|
|
