MENLO飞秒激光器，光梳系统，
太赫兹探测器，太赫兹时域光谱仪，光电探测器
Menlo Systems生产多种飞秒激光器系统,光梳系统，太赫兹探测器，太赫兹时域光谱仪，光电探测器。其中包括基于光纤的激光器，能够达到几十飞秒的脉宽，波长位于可见和红外波段。这些系统非常适合高速光谱仪，光学测量和阿秒脉冲的产生。
T-Light系列-掺Er飞秒光纤激光器
产品特点： 紧凑的结构设计；
24小时/7天的工业级稳定性；
卓越的性价比；
产品应用： 多光子激发共聚焦显微镜子；
材料微加工；
非线性光学；
可取代钛宝石激光器作为振荡源；
THz的产生。
| |
T-Light
|
T-Light FC |
| Central Wavelength |
1560 nm ± 20 nm |
1560 nm ± 20 nm |
| Average Power |
>120 mW |
>100 mW |
| Pulse Energy |
>1.2 nJ |
>1.0 nJ |
| Pulse Width |
<90 fs |
<90 fs |
| Repetition Rate |
100 MHz |
100 MHz |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
free space |
fiber-coupled (FC/APC) |
| Polarization |
linear, s-polarized |
linear, PM fiber |
| Beam Height |
60 mm |
|

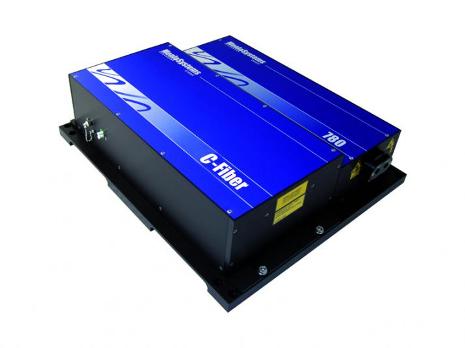

C-fiber系列-掺Er飞秒光纤激光器
产品特点：真正的自启动锁�；�；高平均输出功率；重复频率100 MHz (其他可要求)；提供RS232接口用于数据采集；拥有出色的价格/性价比，免维护。
产品应用：放大器种子光源；远程通讯；生物学和医学诊断成像；时间分辨光谱分析；多光子激发共聚焦显微镜（MPE）；非线性光学；THz 产生。
| |
C-Fiber 780 |
C-Fiber 780 HIGH POWER |
| Central Wavelength |
780 nm ± 10nm |
780 nm ± 10nm |
| Average Power |
>100 mW |
>180 mW |
| Pulse Energy |
>1.0 nJ |
>1.8 nJ |
| Pulse Width |
<120 fs |
<120 fs |
| Repetition Rate |
100 MHz (50-250 MHz with VARIO) |
100 MHz (50-250 MHz with VARIO) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
free space |
free space |
| Auxiliary Output Port |
free space, 1560 nm, >200 mW |
free space, 1560 nm, >350 mW |
| Additional Fiber-Coupled Seed Port |
1 (up to 4 with MULTIBRANCH) |
1 (up to 4 with MULTIBRANCH) |
| Polarization |
linear, s-polarized |
linear, s-polarized |
| Beam Height |
75 mm |
75 mm |
| |
C-Fiber |
C-Fiber High Power |
| Central Wavelength |
1560 nm ± 20 nm |
1560 nm ± 20 nm |
| Average Power |
>100 mW |
>350 mW |
| Pulse Energy |
>1.0 nJ |
>3.5 nJ |
| Pulse Width |
<90 fs |
<90 fs |
| Repetition Rate |
100 MHz (50-250 MHz with Vario) |
100 MHz (50-250 MHz with Vario) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
fiber-coupled (FC/APC) |
free space |
| Polarization |
linear, PM fiber |
linear, s-polarized |
| Beam Height |
|
55 mm |

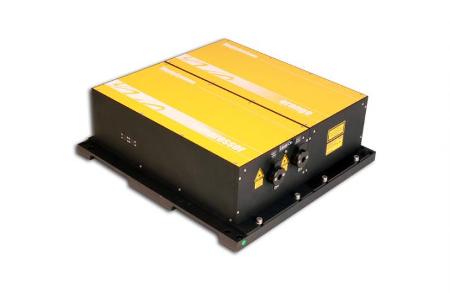

Orange系列-掺Yb飞秒光纤激光器
产品特点： 紧凑的结构设计；
24小时/7天的工业级稳定性；
卓越的性价比；
产品应用： 多光子激发共聚焦显微镜子；
材料微加工；
非线性光学；
可取代钛宝石激光器作为振荡源；
THz的产生。
| |
orange
|
orange HIGH POWER
|
orange HIGH POWER 10 |
| Central Wavelength |
1040 nm ± 10 nm |
1040 nm ± 10 nm |
1040 nm ± 10nm |
| Average Power |
>100 mW |
>1 W |
>10 W |
| Pulse Energy |
>2 nJ |
>20 nJ |
>200 nJ |
| Pulse Width |
<150 fs |
<150 fs |
<150 fs |
| Repetition Rate |
100 MHz (50-250 MHz with VARIO) |
100 MHz (50-250 MHz with VARIO) |
100 MHz (50-250 MHz with VARIO) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Output Port |
free space |
free space |
free space |
| Auxiliary Output Port |
optional |
optional |
optional |
| Additional Fiber-Coupled Seed Port |
1 (up to 4 with MULTIBRANCH) |
1 (up to 4 with MULTIBRANCH) |
1 (up to 4 with MULTIBRANCH) |
| Polarization |
linear, p-polarized |
linear, p-polarized |
linear, p-polarized |
| Beam Height |
75 mm |
75 mm |
75 mm |
| |
WITH OPTION CHIRPED PULSES |
WITH OPTION CHIRPED PULSES |
|
| Pulse Width |
1-4 ps |
30-50 ps |
30-50 ps |
| Output Port |
fiber-coupled (FC/APC) |
fiber-coupled (FC/APC) |
fiber-coupled (FC/APC) |
| Polarization |
linear, PM 980 fiber |
linear, PM 980 fiber |
linear, PM 980 fiber |
M-Comb系列-掺Er飞秒光纤激光器
|
M-Comb |
orange-Comb |
| Central Wavelength |
1560 nm ± 20 nm |
1040 nm +/- 10 nm |
| Average Power |
>75 mW |
>5 mW |
| Spectral width (FWHM) |
>25 nm |
>15 nm |
| Repetition Rate |
250 MHz |
250 MHz |
| Repetition rate tuning |
>2 MHz |
>2 MHz |
| CEO frequency tuning |
>250 MHz |
>250 MHz |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Ports |
4 x fiber-coupled (LC/APC) |
1 x fiber-coupled (LC/APC) |
| Polarization |
linear, PM fiber |
linear, PM fiber |
ELMO系列-掺Er飞秒光纤激光器
产品特点：高稳定度可24小时/7天运转；低噪声；全保偏输出；Figure 9单一锁模状态；开机以后60秒内出光；一体化设计。
| |
ELMO |
ELMO HIGH POWER |
| Central Wavelength |
1560 nm ± 30 nm |
1560 nm ± 30 nm |
| Average Power |
>1 mW |
>100 mW |
| Pulse Energy |
>1.0 pJ |
>1.0 nJ |
| Pulse Width |
chirped |
<90 fs |
| Repetition Rate |
100 MHz (50-100 MHz with VARIO) |
100 MHz (50-100 MHz with VARIO) |
| Repetition Rate Instability |
<1 ppm over 90 hours at constant temperature |
<1 ppm over 90 hours at constant temperature |
| Timing Jitter |
<2 fs [rms, 10 kHz.. 10 MHz] |
<2 fs [rms, 10 kHz.. 10 MHz] |
| Output Port |
fiber-coupled, SC/APC |
fiber-coupled, SC/APC |
| Dispersion Management |
dispersion can be factory set to achieve short pulses after 2m of additional fiber |
dispersion can be factory set to achieve short pulses after 2m of additional fiber |
| 2nd Fiber-Coupled Seed Port |
available with MULTIBRANCH |
available with MULTIBRANCH |
| 2nd High Power Output Port |
|
available with MULTIBRANCH |
| Polarization |
linear, PM fiber |
linear, PM fiber |

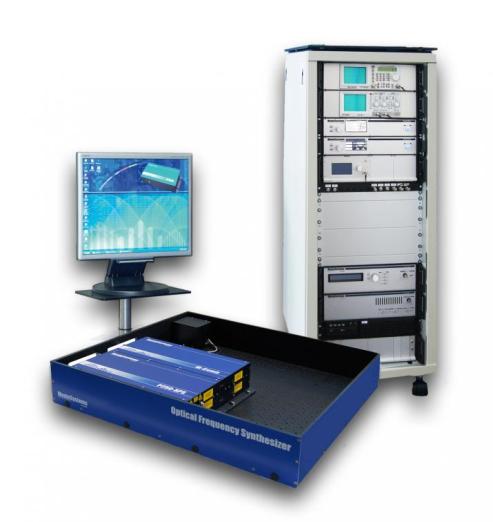

光学频率梳
FC1500-250-WG
FC8004
FC1000-250
Mid-IR Comb
| FC1500-250-WG |
|
| Comb spacing |
250 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 one sec. or same as reference, whichever applies first |
| Tuning range of comb spacing |
>2 MHz |
| Tuning range of offset frequency |
>250 MHz |
| Wavelength range |
1050-2100 nm and 530-900 nm |
| FC8004 |
|
| Comb spacing |
200 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 in one sec. or same as reference, whichever applies first |
| Wavelength range |
630-850 nm and 532, 1064 nm or 500-1100 nm |
| FC1000-250 |
|
| Comb spacing |
250 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 in one sec. or same as reference, whichever applies first |
| Tuning range of comb spacing |
>2 MHz |
| Tuning range of offset frequency |
>250 MHz |
| Wavelength range |
530-1080 nm |
| Mid-IR Comb |
|
| Comb spacing |
100 or 250 MHz |
| Accuracy |
10-14 or same as reference, whichever applies first |
| Stability |
5x10-13 in one sec. or same as reference, whichever applies first |
| Tuning range of comb spacing |
>2 MHz |
| Tuning range of offset frequency |
>250 MHz |
| Wavelength range |
3.1-3.4 um and 6.5-7.8 um (extended range optional) |

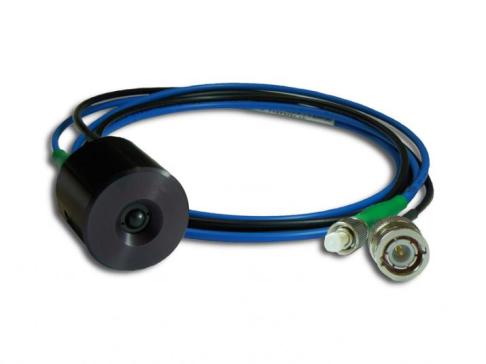

太赫兹天线和太赫兹光谱仪
用于800 nm的太赫兹天线
TERA8-1天线是安装在印刷电路板上的单偶极结构。该天线可用作发射器和探测器。
TERA8-1 用于800纳米的太赫兹天线
T8-H2 用于TERA8-1太赫兹天线的安装座
用于1030 nm的太赫兹天线
TERA10-SL25-FC天线和TERA10-DP25-FC天线具有能实现易用性和性能的保偏、光纤耦合特性。发射器天线和接收器天线的几何结构为了实现信噪比和带宽而进行优化。发射器具有条形几何结构，探测器具有偶极几何结构。
TERA10-DP25-FC 1030 nm太赫兹接收器，光纤耦合输入
TERA10-SL25-FC 1030 nm太赫兹发生器，光纤耦合输入
用于1560 nm的太赫兹天线
TERA15-SL25天线和TERA15-DP25天线，与上述TERA8-1一样，是安装在印刷电路板上的基板。TERA-SL25发射器是条形几何结构，且TERA15-DP25是偶极几何结构。
TERA15-TX-FC天线和TERA15-RX-FC天线是保偏、光纤耦合�？椋呕曰竦酶训奶兆裙β省Ｕ庑┨煜哂糜谕耆庀笋詈系腡ERA-K15和TERA-OSCAT太赫兹光谱仪中。
TERA15-SL25 1560 nm太赫兹发射器，自由空间输入
TERA15-DP25 1560 nm太赫兹接收器，自由空间输入
T15-H2 TERA15-DP25和TERA15-SL25 太赫兹天线安装座
TERA15-TX-FC 1560 nm太赫兹发射，光纤耦合输入
TERA15-RX-FC 1560 nm太赫兹接收器，光纤耦合输入

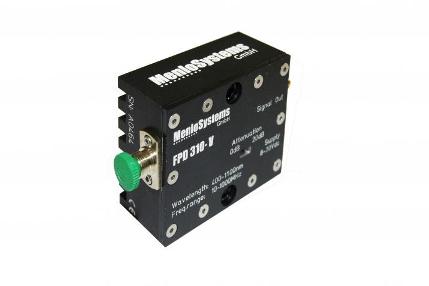

光电探测器
APD210 高速雪崩探测器，硅，400-1000纳米
APD310 高速雪崩探测器， InGaAs，850-1650纳米
FPD310 850-1650 nm高灵敏度PIN探测器，光纤耦合，1 MHz-1.8GHz
FPD310-F 850-1650 nm高灵敏度PIN探测器，自由空间，1MHz-1.8GHz
FPD310-V 高灵敏度硅PIN探测器，400 - 1000 nm，光纤耦合，1 MHz - 1.5 GHz
FPD310-FV 400-1000纳米高灵敏度PIN探测器，自由空间，1MHz-1.5GHz
FPD510 850-1650 nm高灵敏度PIN探测器，光纤耦合，0-250MHz
FPD510-F 850-1650 nm高灵敏度PIN探测器，自由空间，0-250MHz
FPD510-V 高灵敏度硅PIN探测器，400 - 1000 nm，光纤耦合，DC - 250 MHz
FPD510-FV 400-1000纳米高灵敏度PIN探测器，自由空间，0-250MHz
|
线阵CCD光纤光谱仪
