 InPhotonics光纤拉曼探头
 |
我们提供InPhotonics的多种拉曼光谱仪的光纤拉曼探头，每一种探头都具有完全滤掉瑞利线的功能，能够很好的收集信号，并具有紧凑、耐用的探头设计。不同的探头具有不同的激励波长，可以适用于实验室、工业生产和环境监测等方面的应用。探头均与海洋光学公司的拉曼光谱仪的配置相兼容。
我们也可以根据客户的需求定制拉曼探头 |

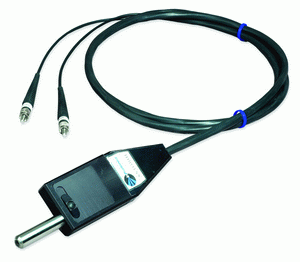

实验室级光纤拉曼探头

| Sampling Head |
Anodized aluminum probe, 4.2" x 1.5" x 0.5" (107 x 38 x 12.7 mm ), with 1.5" long (38 mm) stainless-steel probe tip. |
| Spectral Range |
300 - 3900 cm-1 (Stokes) |
| Excitation Wavelengths |
514, 532, 632, 670, "785" (782-788), 830 nm (laser must be +/- 1.5 nm of specified wavelength, except for 785 nm version) |
| Working Distance |
7.5 mm (std.), 5 or 10 mm optional |
| Fiber Configuration |
Permanently-aligned combination of two single fibers (105 μm excitation fiber, 200 μm collection fiber standard) with filtering and steering micro-optics, N.A. 0.22, in rugged polyurethane jacket. |
| Filter Efficiency |
Patented design for complete filtering of the laser line and quartz spectral contributions from both input and output fibers (O.D. > 6 at laser wavelength) |
| Physical Resistance |
Durable probe can be used up to 80oC |
| Cable Length |
1.5 m |
| Safety Features |
Manual safety shutter to block laser output; Class I sample holders available |
| Coupling System |
Available with FC (std.) or SMA 905 connectors |
您可以访问InPhotonics公司网站了解更多： www.inphotonics.com
|
